ok. But, how does it get emptied, in between measurements? What sort of
release mechanism is there?

1) How do you gather precipitation amounts?

The fatter portion of the station has a bowl for collecting rain. Reading 1.66 inches, overnight, currently.

---

The mind is a weird and mysterious place

Gordon --

A question, and a comment:

1) How do you gather precipitation amounts?

2) Although I'm not a HAM radio operator, have DX'd a number of years.
Past issues of QST magazine showed a gap-type connection, to earth
ground, which should minimize lightening effects (plus, you'd want
to install other power/signal line filters, as well).

Good luck; it looks good.

It has a Ethernet connection to my internet router, and will publish stats to Weather Underground, but it's in "learning" mode right now, so it may be a couple days before I can see real time of it on the web.

Just fun. :~)

I'd have tried to use a wireless connection to the router, since that pole is metal and lightning likes poles, all it needs is the right amount of charge and, I hope you have some sort of heavy duty surge suppressor on that ethernet line to your router, since that link exposes all your PCs to any lightning strike or at the very least, your router. Good luck Gordon.

Well, the signal from the station on the pole out in the yard is wireless. I should have clarified what I meant: The receiving base for the station is connected via Ethernet to my router.

That's much better Gordon.

---

My Amazon Wishlist
The T1 Trust, PRR T1 Class 4-4-4-4 #5550, 1 of America's First HST's

It has a Ethernet connection to my internet router, and will publish stats to Weather Underground, but it's in "learning" mode right now, so it may be a couple days before I can see real time of it on the web.

Just fun. :~)

I'd have tried to use a wireless connection to the router, since that pole is metal and lightning likes poles, all it needs is the right amount of charge and, I hope you have some sort of heavy duty surge suppressor on that ethernet line to your router, since that link exposes all your PCs to any lightning strike or at the very least, your router. Good luck Gordon.

Well, the signal from the station on the pole out in the yard is wireless. I should have clarified what I meant: The receiving base for the station is connected via Ethernet to my router.

---

The mind is a weird and mysterious place

It has a Ethernet connection to my internet router, and will publish stats to Weather Underground, but it's in "learning" mode right now, so it may be a couple days before I can see real time of it on the web.

Just fun. :~)

I'd have tried to use a wireless connection to the router, since that pole is metal and lightning likes poles, all it needs is the right amount of charge and, I hope you have some sort of heavy duty surge suppressor on that ethernet line to your router, since that link exposes all your PCs to any lightning strike or at the very least, your router. Good luck Gordon.

---

My Amazon Wishlist
The T1 Trust, PRR T1 Class 4-4-4-4 #5550, 1 of America's First HST's

Another Aerographer's Mate is born!
Good Luck...

---

It has a Ethernet connection to my internet router, and will publish stats to Weather Underground, but it's in "learning" mode right now, so it may be a couple days before I can see real time of it on the web.

Just fun. :~)

---

The mind is a weird and mysterious place

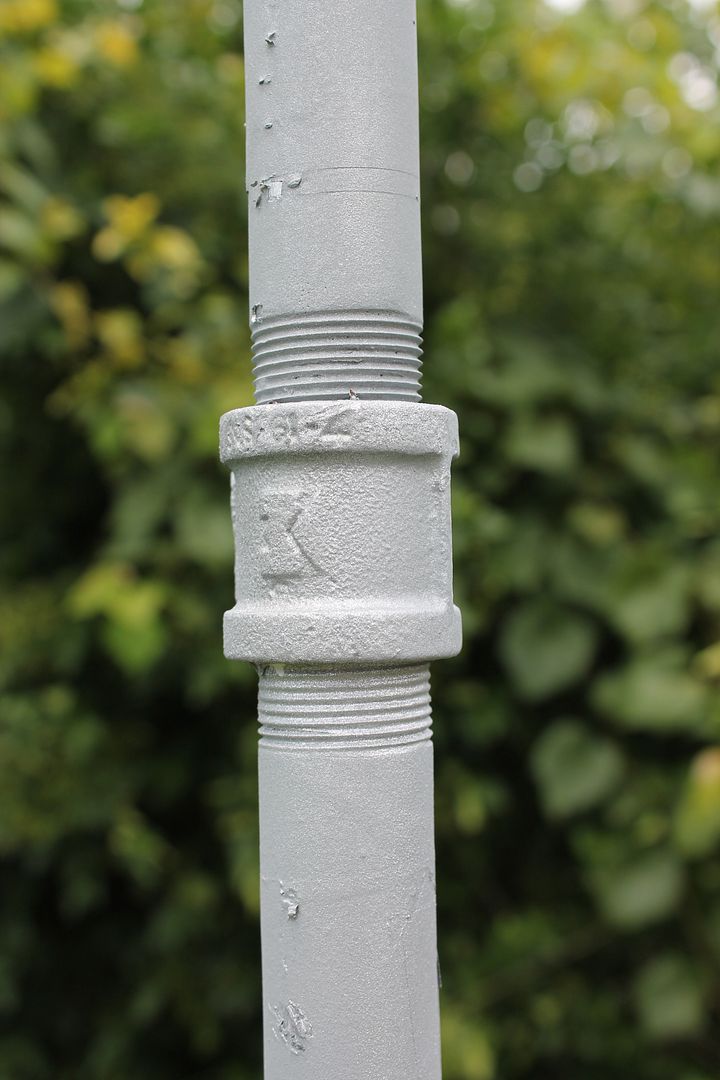

I used a compass to orient it in the right direction. For maintenance, I'll just unscrew this fitting:

---

The mind is a weird and mysterious place

Good luck Gordon Lowe, nice pics.

---

My Amazon Wishlist
The T1 Trust, PRR T1 Class 4-4-4-4 #5550, 1 of America's First HST's

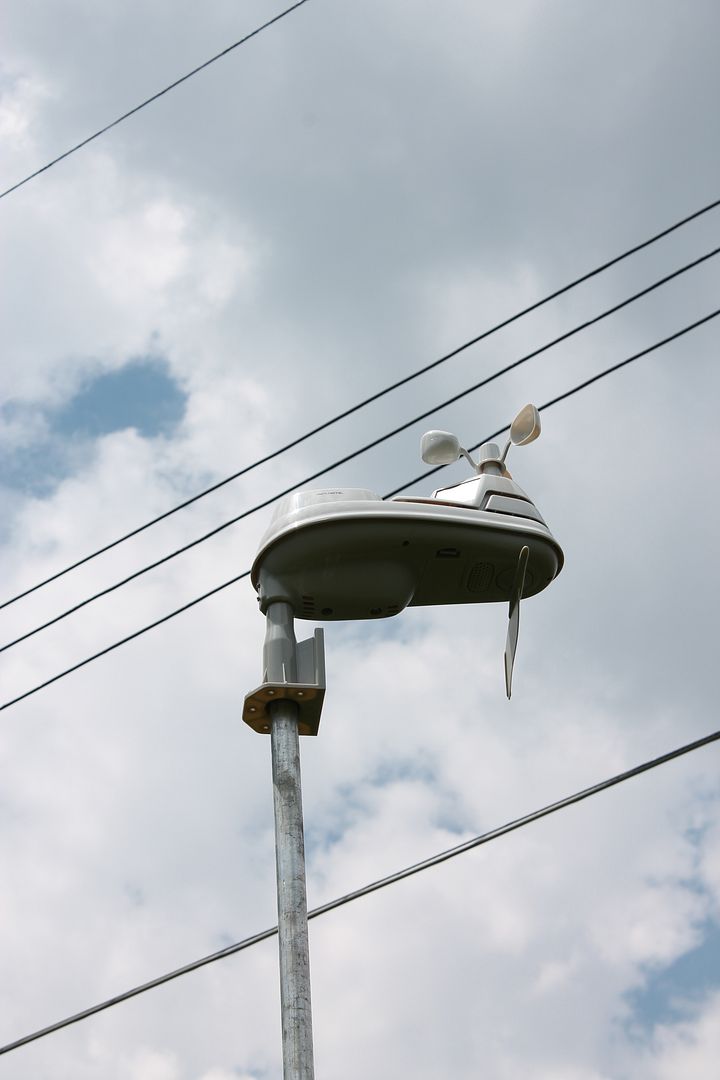

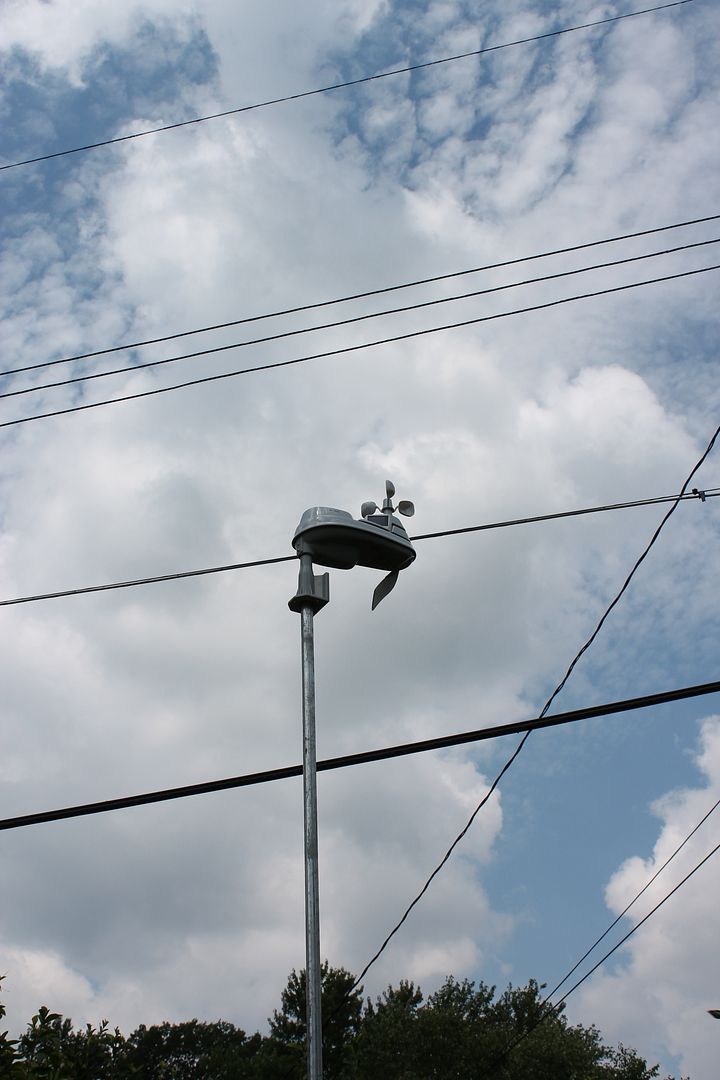

And a couple closer views:

---

The mind is a weird and mysterious place

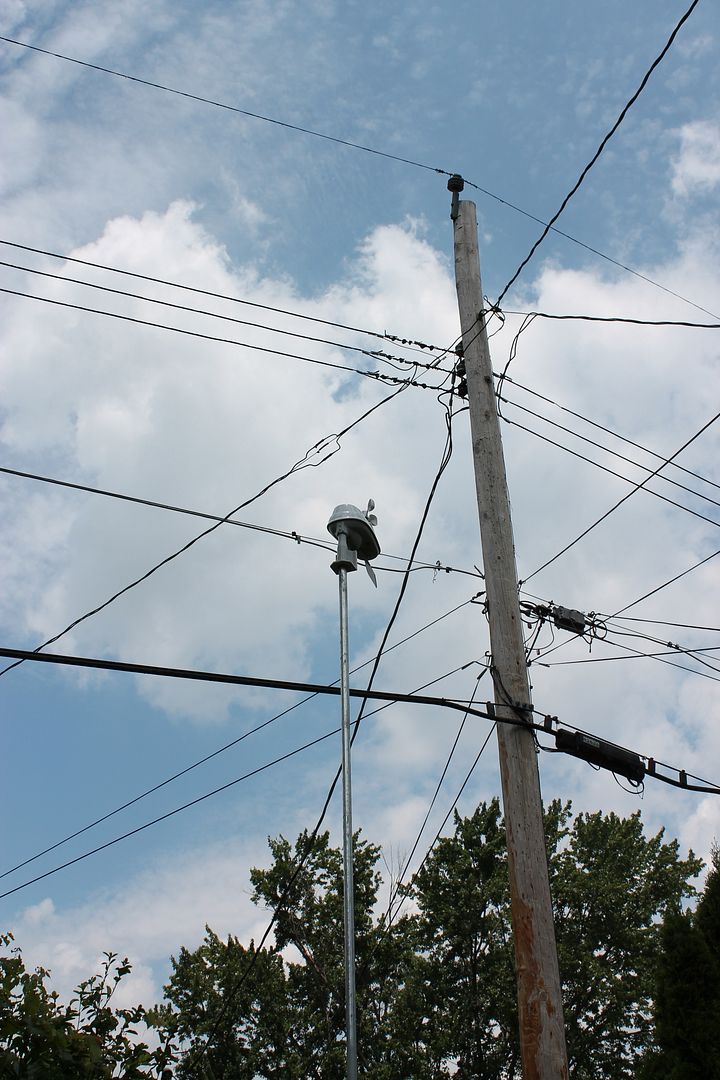

Here's a picture of the station. It's actually several feet away from those power lines.

---

The mind is a weird and mysterious place

I used 100 pounds of cement to sink a 1 inch diameter galvanized pipe, 6 feet in length, burying it 3 feet. Atop that, I connected two 3/4 inch pipes, both 6 feet. The total finished height of the station is about 16 feet. The U.S. Nat'l Weather Service recommends 33 feet officially, but I'm not that serious. ;~)

---

The mind is a weird and mysterious place

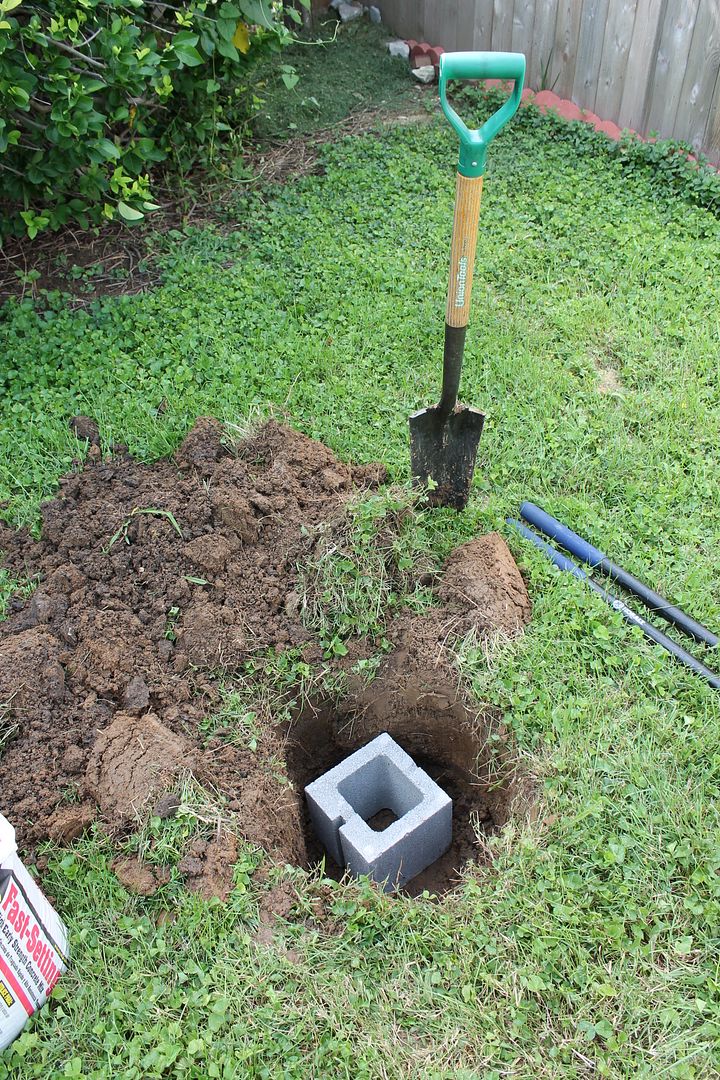

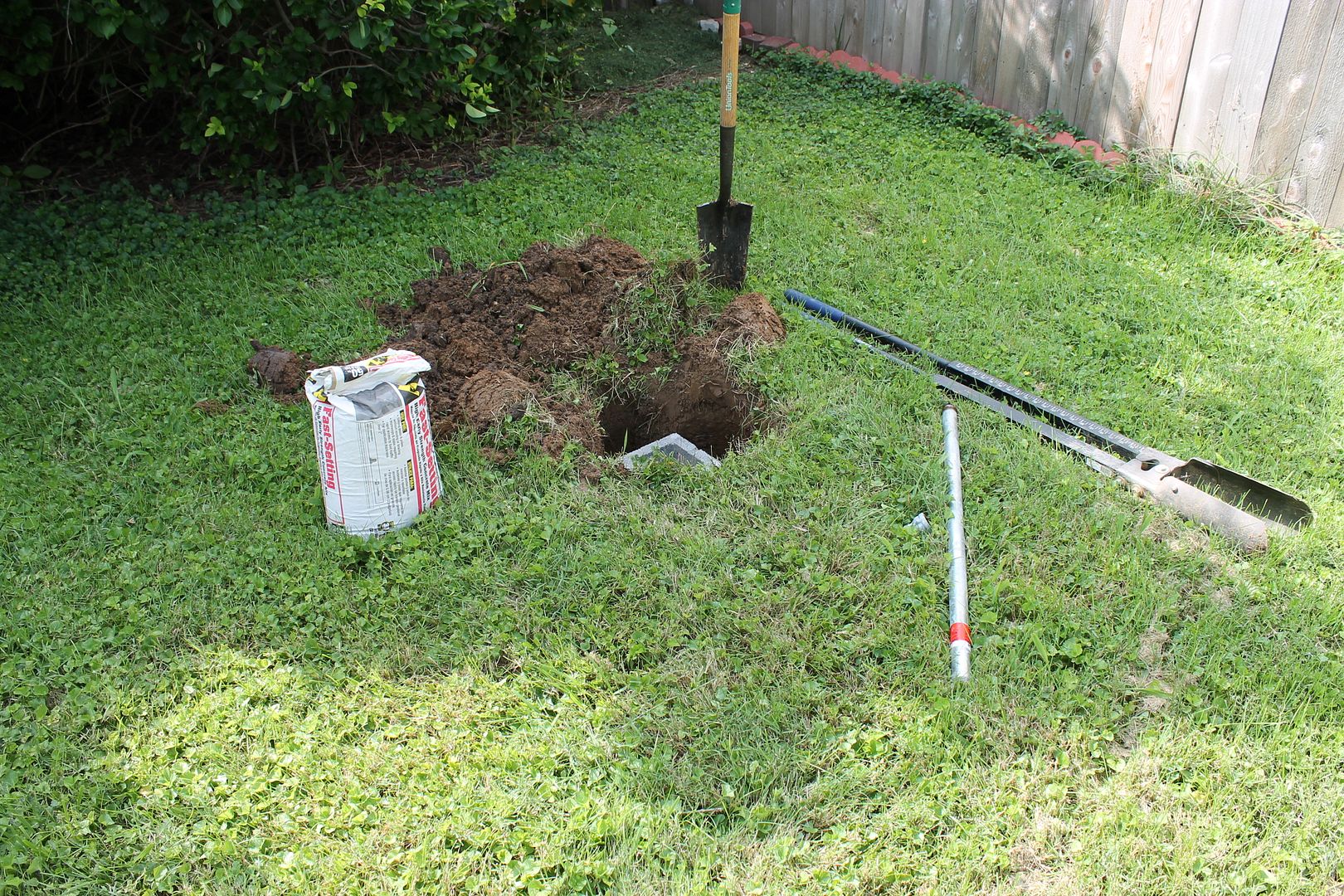

I dug a hole for the post last weekend:

---

The mind is a weird and mysterious place

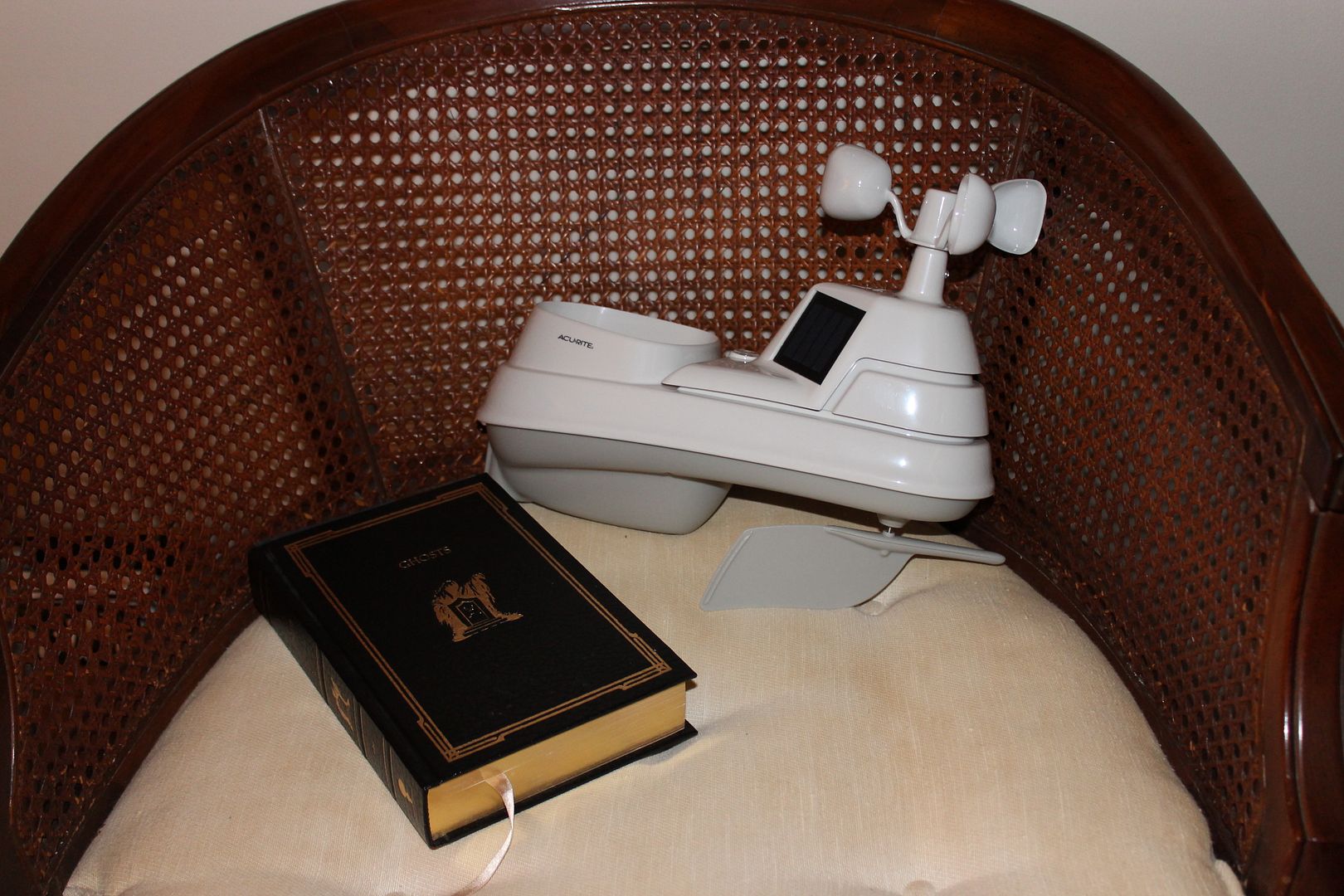

My home weather station arrived today. I was surprised at how light it was, and tiny it was. Here's a picture:

---
